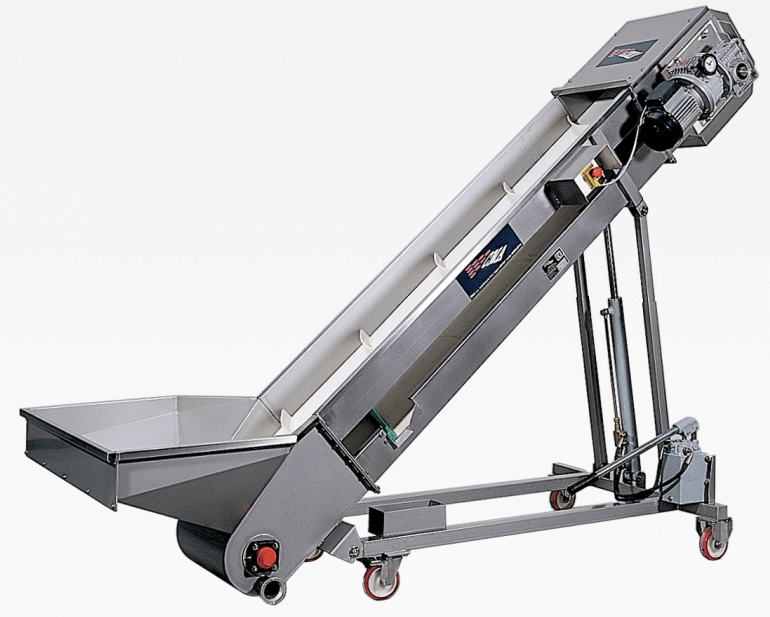

Elevator Belt N250

Elevator Belt N250 Elevator Belt N250
Dopravník N250 | UNICOM servis, spol. s r.o.

Files for download

  • Stainless steel AISI 304 double structure in order to make the cleaning easier.
  • Non - Toxic PVC belt fit for food
  • It is equiopped with a driving and a diverter roller in order to obtain the longitudinal movement of transport belt
  • Complete with a hooper (0.91 m × 0.75 m) on N400 (0.76 m × 0.75 m na N250).
  • Complete with hydraulic piston controlled by a manual pump
  • On wheels for ease of movement in the cellar
  • Connection for the recovery of fluids.
  • Installed power from 0.75 kW up to 1.85 kW.

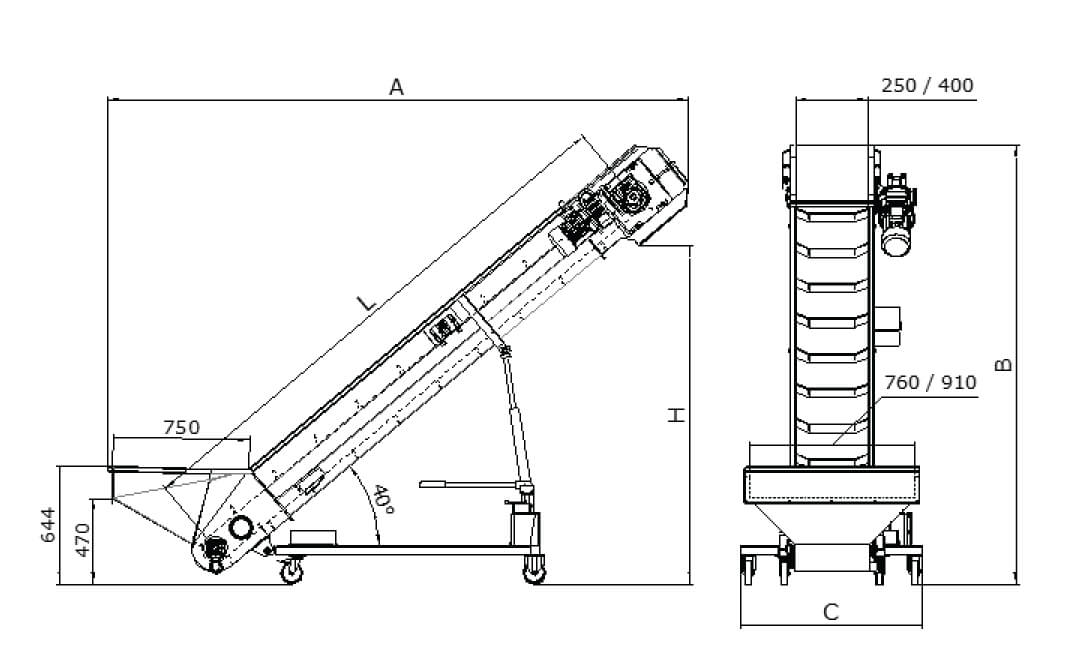

N250 × 2.0
Belt Width 250 mm – roller wheelbase 2.0m
N250 × 2.5
Belt Width 250 mm –  roller wheelbase 2.5m
N250 × 3.0
Belt Width 250 mm –  roller wheelbase 3.0m
N250 × 3.5
Belt Width 250 mm –  roller wheelbase 3.5m
N250 × 4.0
Belt Width 250 mm –  roller wheelbase 4.0m
N250 × 4.5
Belt Width 250 mm –  roller wheelbase 4.5m
N250 × 5.0
Belt Width 250 mm –  roller wheelbase 5.0m
N250 × 5.5
Belt Width 250 mm –  roller wheelbase 5.5m
N250 × 6.0
Belt Width 250 mm –  roller wheelbase 6.0m
N250 × 6.5
Belt Width 250 mm –  roller wheelbase 6.5m
N250 × 7.0
Belt Width 250 mm –  roller wheelbase 7.0m
N250 × 7.5
Belt Width 250 mm –  roller wheelbase 7.5m
N250 × 8.0
Belt Width 250 mm –  roller wheelbase 8.0m
N250 × 8.5
Belt Width 250 mm –  roller wheelbase 8.5m
N250 × 9.0
Belt Width 250 mm –  roller wheelbase 9.0m


Variable speed drive
increaseElectrical panel complete with electronic and speed variator.
deductionElevator without hydraulic system of lifting
deductionElevator without hopper
increase
Draining hopper with standard dimensions
increase
Lowered hopper (420 mm a 40°)
increase
Hopper 1300 x 1280 mm
increase
Elevator with 4 swivel wheels with brakes
increase
Elevators with motors on the lower side
increase
Quick release belt (N250 do 4m)
increase
Belt with close supports(200 mm)

Belt washing system

Fixed conveyor on output

360° revolving conveyor assembly kit

slide for rotating conveyor

Telescopic slide

Output slide motorized roller assebly Kit

Transport
