CMA Grape selection belt table

CMA Grape selection belt table CMA Grape selection belt table
CMA třídící stůl S800 | UNICOM servis, spol. s r.o.

Files for download

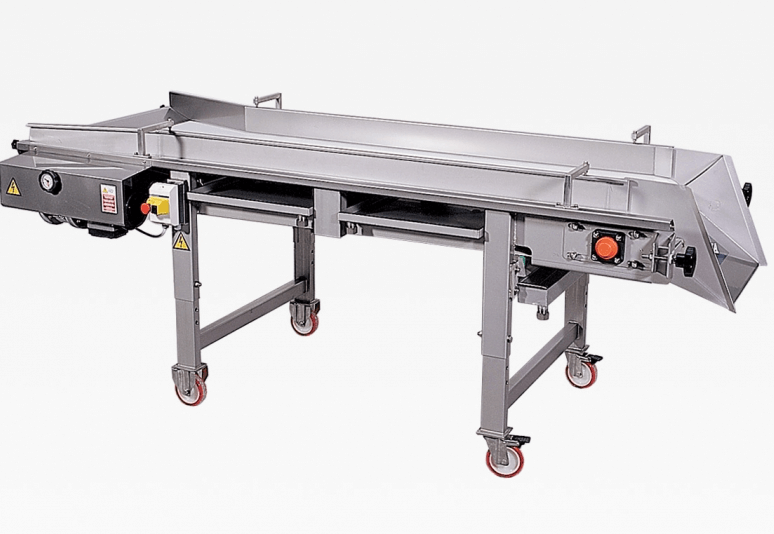

Structure completely made in stainless steel AISI 304. Non-toxic PVC belt for food. It is equipped with a driving and diverter roller in order to obtain the longitudinal movement of the transport belt. On wheels for ease of movement in the winery. Feet adjustable in height. Dividers on the lenght of the table facilitate the separation and the moving forward of the damaged bunches. Complete with mechanical speed variator. Power installed kW 0.75.

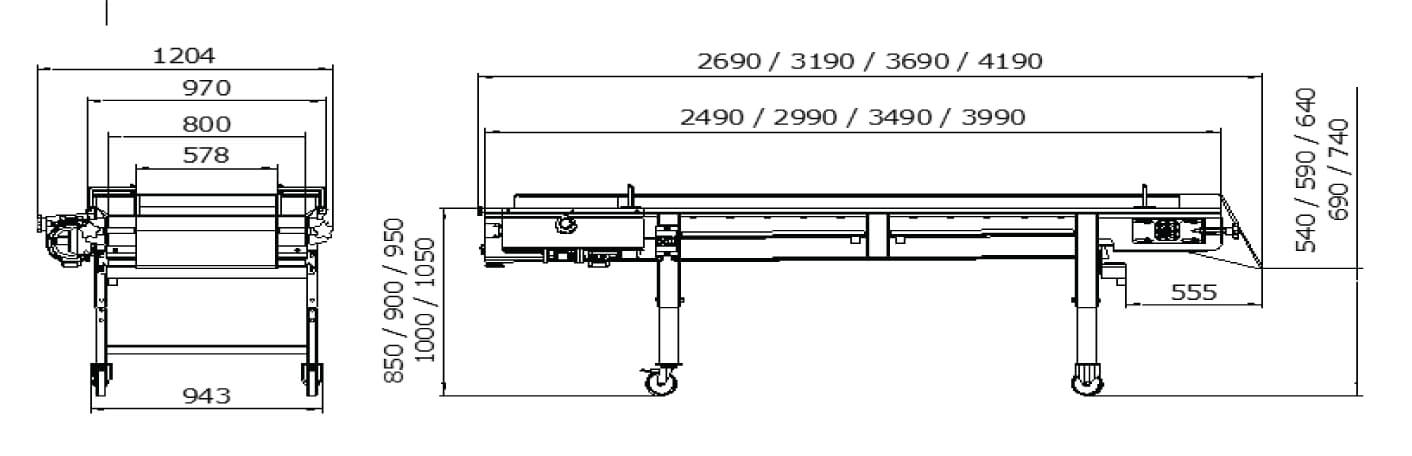

S800 x 2.5Belt Width 800 mm – Surface length 2.5 m
S800 x 3.0Belt Width 800 mm – Surface length 3.0 m
S800 x 3.5Belt Width 800 mm – Surface length 3.5 m
S800 x 4.0Belt Width 800 mm – Surface length 4.0 m
deductionTable without separation dividers
