PREXA N-INFINITY
PNEUMATIC PRESS WITH NITROGEN - INFINITY
The innovation introduced by Puleo with the Infinity system is based on pressing with nitrogen under a protected atmosphere, WITHOUT QUANTITATIVE LIMITS OF INERT GAS.
The special feature of this winery equipment is the ability of the pneumatic press to autonomously obtain nitrogen from the atmospheric air by means of a molecular divider. Nitrogen is made available during the different processing cycles.
The nitrogen captured is automatically managed by the system. This process serves to inertise the pressing environment and ensure fast and constant draining of the musts, right from the first stage of press loading.
The INFINITY system of this wine press offers a unique advantage: unlimited availability of new nitrogen, eliminating the need for recirculation or storage.
The pressurised nitrogen, which enters the pressing chamber at each cycle:
- ensures complete inertisation
- facilitates continuous and more efficient draining than conventional systems
This pressing with nitrogen leads to optimal results in terms of yield and product quality.
As the nitrogen enters the pressure tank, depressurisation creates an environment with decreasing temperatures, further improving the process.

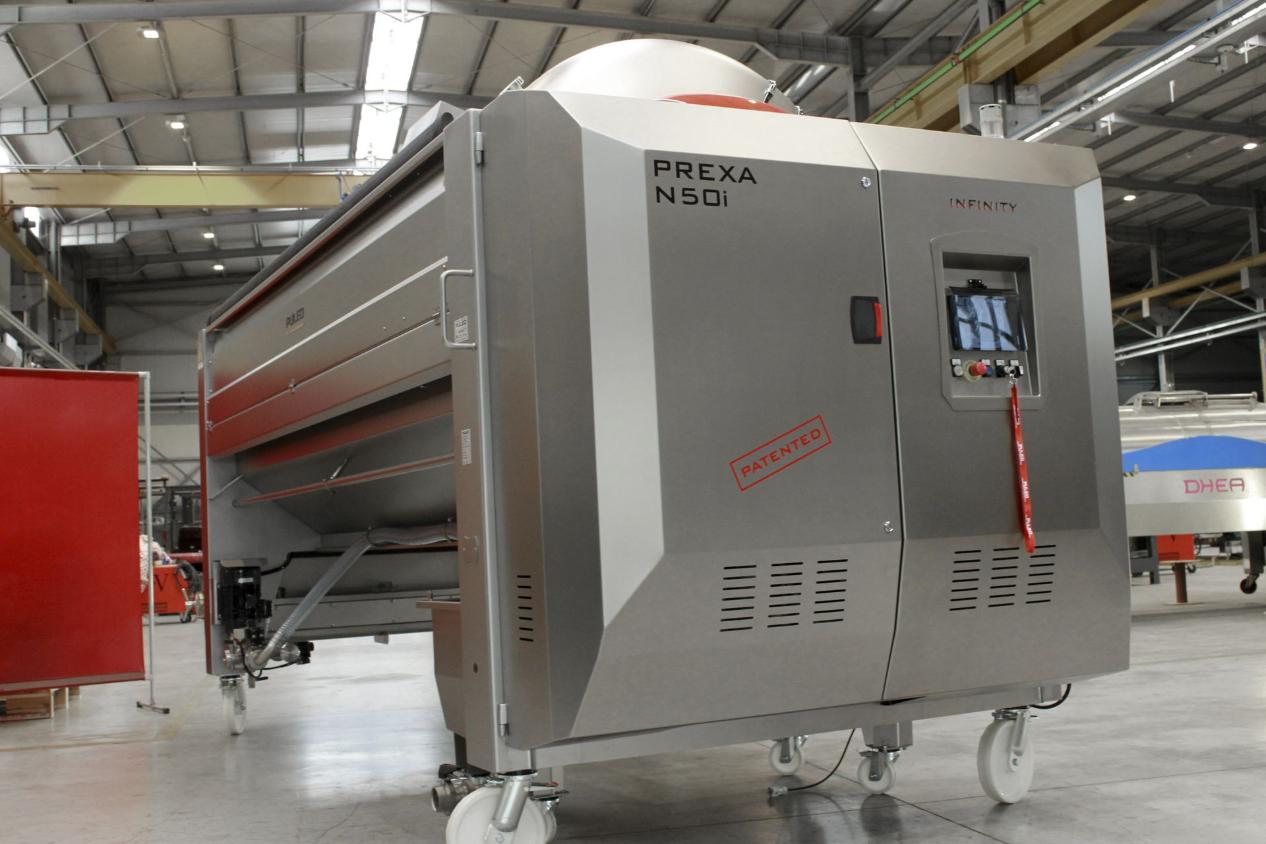

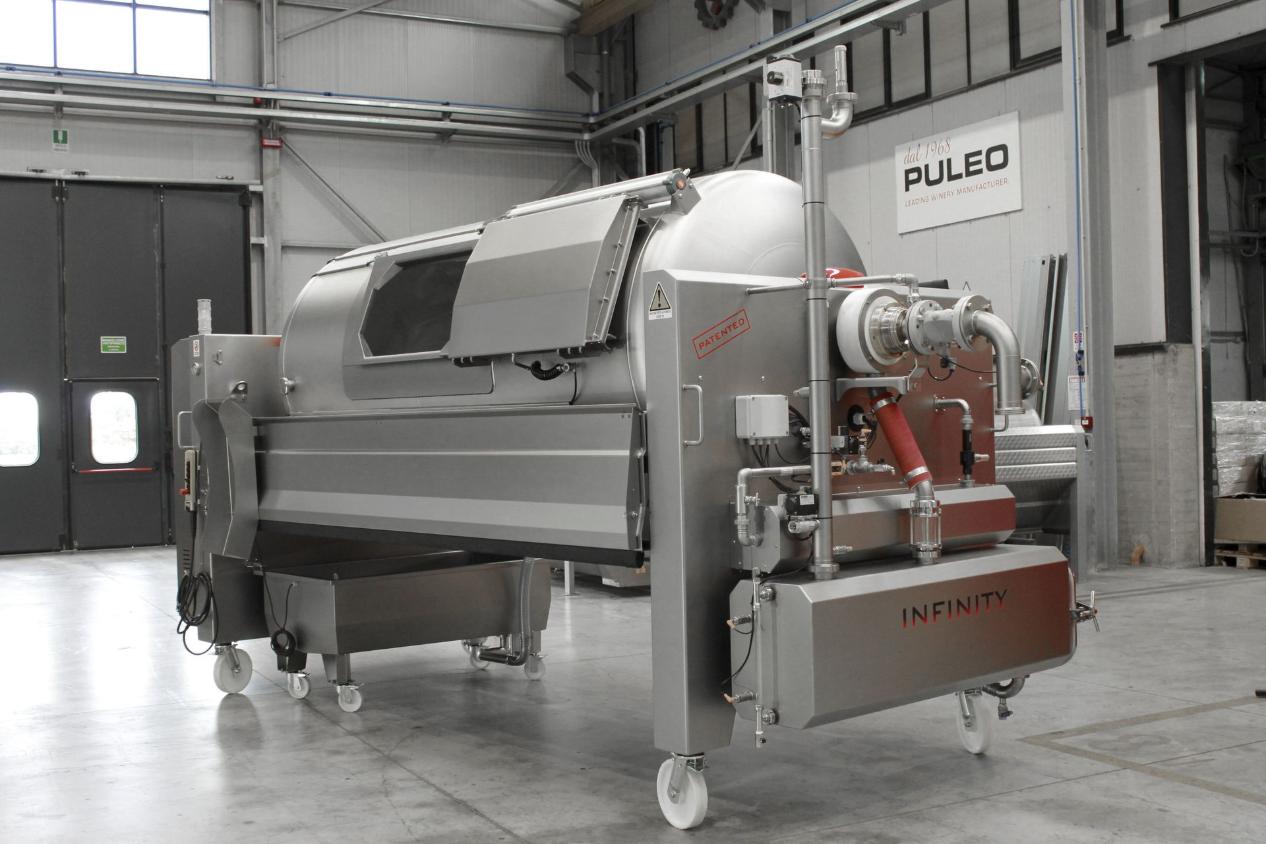

PREXA N is a hybrid press. In addition to operating in INFINITY SYSTEM MODE, it can also operate in:
CLASSIC MODE (PREXA C): In this mode, operation follows the principle of closed tank presses. The must is extracted through internal channels, which, through the opening of the nozzles, allow the product to flow out to an external collection basin.
Advantages
- Significantly reduced inerting and pressing times
- Radical reduction in the permanence of the must inside the press, which is immediately extracted and separated from the marc
- Unlimited and integrated availability of always new, up to 99.9% pure nitrogen, without the need for recycling and storage systems
- High yield of qualitative and quantitative extraction of must due to continuous pressurisation of the inert gas
A distinctive element of this system is our exclusive patent, the INFINITY SYSTEM®, which underlines Puleo's commitment to oenological innovation and to offering state-of-the-art solutions for wine producers.
 |  |  |  |  |  |  |  |  | Download PDF | |
| N22i | 1.725 mm | 2.300 mm | 3.700 mm | 500x420 mm | 2.200 l | 4 mq | 1.300 / 1.700 Kg | 4.000 / 5.500 Kg | 5.500 / 7.600 Kg | Data Sheet |
| N30i | 1.920 mm | 2.500 mm | 4.450 mm | 500x420 mm | 3.100 l | 4 mq | 1.900 / 2.500 Kg | 5.800 / 7.900 Kg | 8.000 / 11.000 Kg | Data Sheet |
| N40i | 2.030 mm | 2.620 mm | 4.150 mm | 500x420 mm | 3.960 l | 4,5 mq | 2.400 / 3.200 Kg | 7.500 / 10.000 Kg | 10.500 / 14.000 Kg | Data Sheet |
| N50i | 2.030 mm | 2.620 mm | 5.200 mm | 600x450 mm | 4.800 l | 5,5 mq | 2.900 / 3.900 Kg | 9.100 / 12.000 Kg | 12.500 / 17.000 Kg | Data Sheet |
| N70i | 2.060 mm | 2.310 mm | 6.400 mm | 600x450 mm | 6.800 l | 8 mq | 4.100 / 5.400 Kg | 13.000 / 17.700 Kg | 18.000 / 25.000 Kg | Data Sheet |
| N80i | 2.060 mm | 2.360 mm | 6.400 mm | 800x580 mm | 7.940 l | 9 mq | 4.800 / 6.300 Kg | 15.200 / 20.700 Kg | 21.000 / 29.200 Kg | Data Sheet |
| N100i | 2.300 mm | 2.620 mm | 6.700 mm | 800x580 mm | 9.480 l | 10 mq | 5.700 / 7.600 Kg | 18.500 / 25.500 Kg | 26.000 / 35.000 Kg | Data Sheet |
| N150i | 2.600 mm | 2.640 mm | 6.700 mm | 580x800 mm | 14.950 l | 12 mq | 9.000 / 12.000 Kg | 29.000 / 42.000 Kg | 43.000 / 57.000 Kg | Data Sheet |
| N250i | 2.900 mm | 2.720 mm | 9.900 mm | 580x800 mm | 24.700 l | 17 mq | 14.800 / 19.800 Kg | 49.000 / 75.000 Kg | 77.000 / 94.000 Kg | - |
| N320i | 2.850 mm | 2.720 mm | 10.100 mm | 580x800 mm | 32.100 l | / | 19.300 / 25.700 Kg | 64.000 / 100.000 Kg | 101.000 / 125.000 Kg | - |
